Product |
Model |
WAP-1963A |
Standard |
IEEE 802.11b (Wireless), IEEE 802.3 (Wired) |
Frequency Band |
2.400~2.4835GHz |
Transfer Rate |
11/5.5/2/1Mbps, auto fallback |
Modulation |
CCK@11/5.5Mbps, DQPSK@2Mbps and DBPSK@1Mbps |
Radio Technology |
Direct Sequence Spread Spectrum (DSSS) |
Antenna |
External detachable dipole antenna |
Transmit Power |
18dBm (Typical) |
Antenna Gain |
2dBi |
Work Modes |
AP
Station - Ad Hoc
Station - Infrastructure

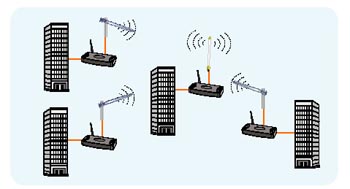

AP Bridge - Point to Point
AP Bridge - Point to Multi-Point
AP Bridge - WDS |
LAN Interface |
1-port RJ-45 UTP |
Cabling |
Category 5/5e or above, 4-pair |
LED Indicators |
3; PWR, WLAN, LAN |
Power |
12V DC, 0.5A |
Temperature |
0 ~ 55 degree C (Operating) |
Humidity |
10 ~ 90%, non-condensing (Operating) |
Dimension |
160 x 87 x 28 (mm) |
Weight |
200g |
Emission |
FCC class B, CE-mark |
|
